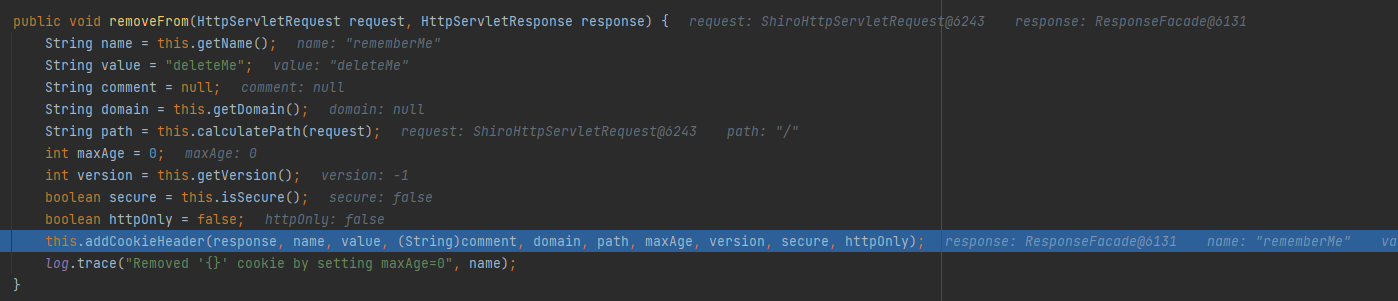

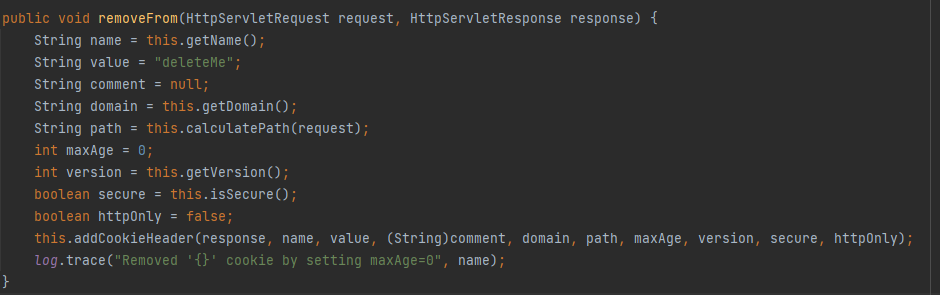

private void addCookieHeader(HttpServletResponse response, String name, String value, String comment, String domain, String path, int maxAge, int version, boolean secure, boolean httpOnly) {
        String headerValue = this.buildHeaderValue(name, value, comment, domain, path, maxAge, version, secure, httpOnly);
        response.addHeader("Set-Cookie", headerValue);
        if (log.isDebugEnabled()) {
            log.debug("Added HttpServletResponse Cookie [{}]", headerValue);
        }

    }

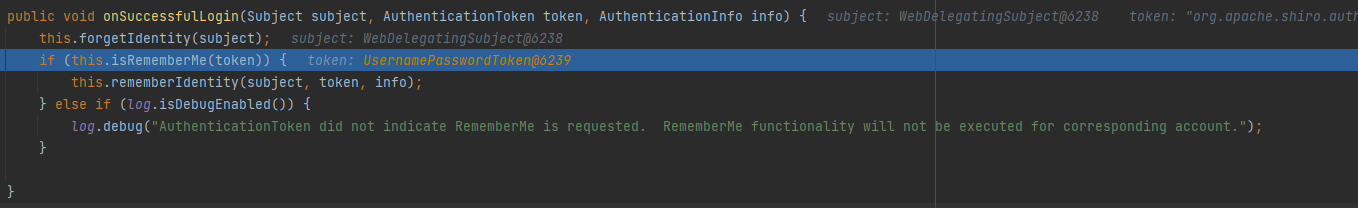

protected void rememberIdentity(Subject subject, PrincipalCollection accountPrincipals) {
        byte[] bytes = this.convertPrincipalsToBytes(accountPrincipals);
        this.rememberSerializedIdentity(subject, bytes);
    }

protected byte[] convertPrincipalsToBytes(PrincipalCollection principals) {
    byte[] bytes = this.serialize(principals);
    if (this.getCipherService() != null) {
        bytes = this.encrypt(bytes);
    }

    return bytes;
}

protected byte[] serialize(PrincipalCollection principals) {
    return this.getSerializer().serialize(principals);
}

public byte[] serialize(T o) throws SerializationException {
    if (o == null) {
        String msg = "argument cannot be null.";
        throw new IllegalArgumentException(msg);
    } else {
        ByteArrayOutputStream baos = new ByteArrayOutputStream();
        BufferedOutputStream bos = new BufferedOutputStream(baos);

        try {
            ObjectOutputStream oos = new ObjectOutputStream(bos);
            oos.writeObject(o);
            oos.close();
            return baos.toByteArray();
        } catch (IOException var6) {
            String msg = "Unable to serialize object [" + o + "].  " + "In order for the DefaultSerializer to serialize this object, the [" + o.getClass().getName() + "] " + "class must implement java.io.Serializable.";
            throw new SerializationException(msg, var6);
        }
    }

protected byte[] convertPrincipalsToBytes(PrincipalCollection principals) {
    byte[] bytes = this.serialize(principals);
    //this.getCipherService()就当获取加密方式了
    if (this.getCipherService() != null) {
        bytes = this.encrypt(bytes);
    }

    return bytes;
}

protected byte[] encrypt(byte[] serialized) {
    byte[] value = serialized;
    CipherService cipherService = this.getCipherService();
    if (cipherService != null) {
        //加密serialized，this.getEncryptionCipherKey()是Base64.decode("kPH+bIxk5D2deZiIxcaaaA==")
        ByteSource byteSource = cipherService.encrypt(serialized, this.getEncryptionCipherKey());
        //加密后的数据转为byte数组
        value = byteSource.getBytes();
    }

    return value;
}

protected void rememberSerializedIdentity(Subject subject, byte[] serialized) {
    //走进上面的肯定是有点异常了，所以看else
    if (!WebUtils.isHttp(subject)) {
        if (log.isDebugEnabled()) {
            String msg = "Subject argument is not an HTTP-aware instance.  This is required to obtain a servlet request and response in order to set the rememberMe cookie. Returning immediately and ignoring rememberMe operation.";
            log.debug(msg);
        }

    } else {
        HttpServletRequest request = WebUtils.getHttpRequest(subject);
        HttpServletResponse response = WebUtils.getHttpResponse(subject);
        //base64编码被AES加密的序列化内容
        String base64 = Base64.encodeToString(serialized);
        //获取Cookie对象
        Cookie template = this.getCookie();
        //实例化新的Cookie对象，但是里面内容都是template里面的，因为SimpleCookie(template)的构造方法就是把template的值都取出然后赋值到本身
        Cookie cookie = new SimpleCookie(template);
        //设置新的值
        cookie.setValue(base64);
        //saveTo的内容和上面的removeFrom一样，就是把base64编码后的值放到rememberMe去
        cookie.saveTo(request, response);
    }
}

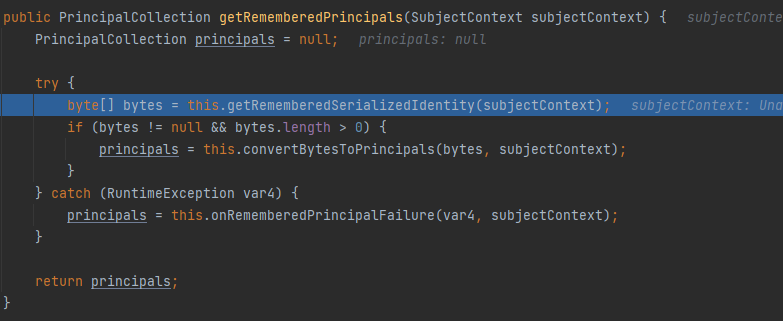

protected byte[] getRememberedSerializedIdentity(SubjectContext subjectContext) {
    if (!WebUtils.isHttp(subjectContext)) {
        if (log.isDebugEnabled()) {
            String msg = "SubjectContext argument is not an HTTP-aware instance.  This is required to obtain a servlet request and response in order to retrieve the rememberMe cookie. Returning immediately and ignoring rememberMe operation.";
            log.debug(msg);
        }

        return null;
    } else {
        WebSubjectContext wsc = (WebSubjectContext)subjectContext;
        if (this.isIdentityRemoved(wsc)) {
            return null;
        } else {
            //上面都不用看
            HttpServletRequest request = WebUtils.getHttpRequest(wsc);
            HttpServletResponse response = WebUtils.getHttpResponse(wsc);
            //readValue读到rememberMe内的值
            String base64 = this.getCookie().readValue(request, response);
            //如果值为deleteMe则返回
            if ("deleteMe".equals(base64)) {
                return null;
            //base64不为null则往下走
            } else if (base64 != null) {
                //这是为了保证base64不出错算base64字符是否能整除4，如果不行则在后面加一个=
                base64 = this.ensurePadding(base64);
                if (log.isTraceEnabled()) {
                    log.trace("Acquired Base64 encoded identity [" + base64 + "]");
                }
	//解码base64字符
                byte[] decoded = Base64.decode(base64);
                if (log.isTraceEnabled()) {
                    log.trace("Base64 decoded byte array length: " + (decoded != null ? decoded.length : 0) + " bytes.");
                }
	//返回byte数组
                return decoded;
            } else {
                return null;
            }
        }
    }
}

protected PrincipalCollection convertBytesToPrincipals(byte[] bytes, SubjectContext subjectContext) {
    if (this.getCipherService() != null) {
        bytes = this.decrypt(bytes);
    }

    return this.deserialize(bytes);
}

protected PrincipalCollection deserialize(byte[] serializedIdentity) {
    return (PrincipalCollection)this.getSerializer().deserialize(serializedIdentity);
}

    public T deserialize(byte[] serialized) throws SerializationException {
        if (serialized == null) {
            String msg = "argument cannot be null.";
            throw new IllegalArgumentException(msg);
        } else {
            ByteArrayInputStream bais = new ByteArrayInputStream(serialized);
            BufferedInputStream bis = new BufferedInputStream(bais);

            try {
                ObjectInputStream ois = new ClassResolvingObjectInputStream(bis);
                T deserialized = ois.readObject();
                ois.close();
                return deserialized;
            } catch (Exception var6) {
                String msg = "Unable to deserialze argument byte array.";
                throw new SerializationException(msg, var6);
            }
        }
    }
}
